K.U.L.T. Habicht Weeding Frame

K.U.L.T. Habicht Weeding Frame

K.U.L.T. Habicht Weeding Frames provide high stability for vegetable, field crop or special plant cultivation. High precision is achieved in combination with an optional camera guidance system.  Ideal to be upgraded with our Fingerweeder or tools for raised beds.

Range of Uses

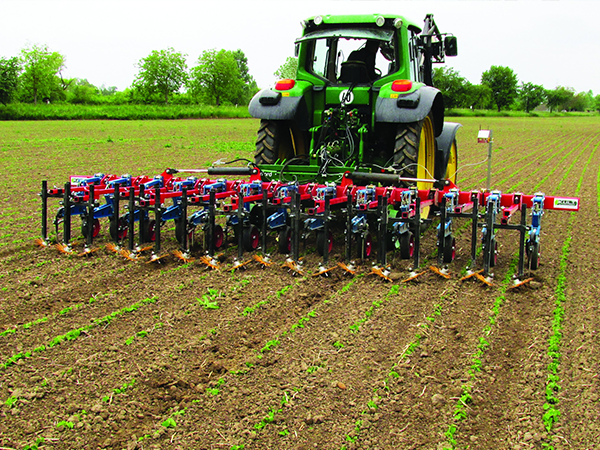

Habicht rear mounted with camera guidance in rapeseed.
HABICHT rear mounted with camera guidance in cereals.
HABICHT rear mounted with camera guidance, 12 rows in beans.
HABICHT front mounted with Fingerweeder, 4 rows in chives.
HABICHT rear mounted with hand steering, 1 row in lavender.

HABICHT
for raised beds, shown in carrots.

HABICHT rear mounted with camera guidance, 11 rows in cabagge.

K.U.L.T. Habicht Weeding Frame

Operating principle Parallelogram guided inter-row tools.

All tools with springs.

Assembly groups
  • Basic frame with tractor attachment, with mounting support for mounting between the axles.
  • Parallelograms with adjustable Farmflex-wheel, double ball bearing mounted.
  • Tool support with 1-5 tools, including cantilever support with spring.
Time of application The smaller the weed the more sustainable is the result.
Mounting
  • Front mounting Kat I/II and triangle, adjustable support tire.
  • Rear mounting Kat I/II and triangle with edged metal supporting wheels or adjustable tire with handsteering.
  • Mounting between the axles for all Fendt GT starting from model series 218.
Row width from 15cm
Working width 1- 6 m, possible with hydraulic folding.
Clearance
  • approx. 50 cm with Parallelogram rods of 186 mm
  • approx. 60 cm with Parallelogram rods of 254 mm
  • approx. 75 cm with Parallelogram rods of 334 mm
Working depth
  • with flat shares: 3 cm
  • with standard shares: 3-7 cm
  • with (disk-) furrowers: up to 10 cm
Working speed Depending on the plant: 4-10 km/h
Specialities Easy to combine with:

  • Camera control / Vision Control
  • Fingerweeder
  • Protective plates or discs
  • Various tools for raised beds
  • Fertilizer spreader (only rear mounted)
