K.U.L.T Argus Weeding Frame

K.U.L.T Argus Weeding Frame

Weed control is the most important maintenance work for vegetable growers.

Shallow surface cultivation, besides removing weeds, reduces weed seed germination and allows better water penetration.

With the ARGUS cultivator system from KULT Kress, all cultivation work can be done to your full satisfaction in a single work step.

Starting from row widths of 15 cm, the cultivator system ARGUS from KULT Kress is an indispensable help in all cultures and crops.

Range of Uses

For precise hoeing close to the row in vegetables, but as well as in field crops, cereals and specialized crops. Versatile combinations with a range of tools for ridges or beds.  Ideal to be upgraded with our Fingerweeder or DUO parallelogram.

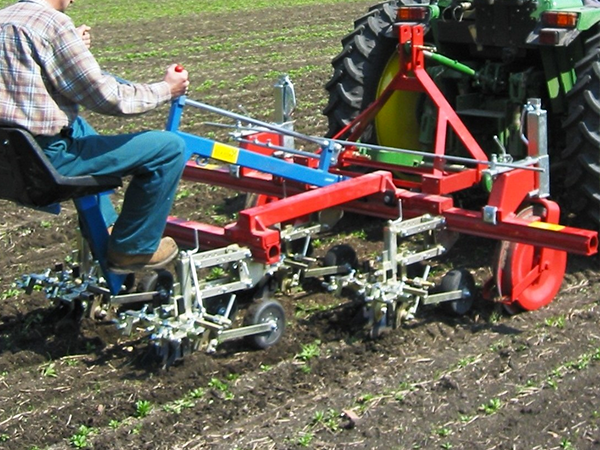

ARGUS weeding frame rear mounted with handsteering in salad.  6-row version in combination with K.U.L.T. Fingerweeder MEDIUM
In combination with the K.U.L.T.-DUO-Parallelogram it’s possible to work in row widths from 20 cm accurately beginning in a very early stage.

ARGUS weeding frame in raised beds
Thanks to various possibilities of tool combinations there is a solution for every requirement.

Front-mounting can provide excellent views of all the tools. For example shares combined with the K.U.L.T. - Fingerweeder.
Camera controlled ARGUS weeding frame shown front mounted. Provides high accuracy at high speeds.

In combination with K.U.L.T. – Telescopic hoes and DUO-Parallelogram form a very short construction for example in tool carriers is possible. Here 12-rows in onions.

Application of the ARGUS weeding frame with K.U.L.T. – Fingerweeder in bush beans.

K.U.L.T Argus Weeding Frame

Operating principle Parallelogram guided inter-row tools.
All tools with springs
Assembly groups
  • basic frame with tractor attachment, with mounting support for mounting between the axles.
  • Parallelograms with adjustable Farmflex-wheel, double ball bearing mounted.
  • tool support with 1-5 tools, including cantilever support with spring
Time of application The smaller the weed the more lasting is the result
Mounting
  • Front mounting Kat I/II and triangle, adjustable support tire.
  • Rear mounting Kat I/II and triangle with Schneidstützräder or adjustable tire with handsteering
  • Mounting between the axles for all Fendt GT ab Baureihe 218
Row width from 15cm
Working width 1- 6 m, possible with hydraulic folding
Clearance
  • approx. 50 cm with Parallelogram crossbars rods of 1186 mm
  • approx. 60 cm with Parallelogram crossbars rods of 254 mm
  • approx. 75 cm with Parallelogramcrossbars rods of 334 mm
Working depth
  • with flat shares: 3 cm
  • with standard shares: 3-7 cm
  • with (disk-) furrowers: up to 10 cm
Working speed
Depending on the plant: 4-10 km/h
Specialities
Easy to combine with:

  • Fingerweeder
  • DUO-Parallelogram
  • various tools for raised beds
  • protective plate or disc
  • fertilizer spreader (only rear mounted)
  • existing cultivators from other producers
